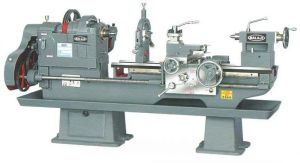

All Geared Lathe Machine (250)

Products

Contact Us

GM Machine Tools Pvt. Ltd.

5C-77, N.I.T, Faridabad, Haryana - 121001, India

Mobile : +91-9312499859, +91-9311507241

Call Us : 08042756752

We are respectable Importer and Supplier of All Geared Lathe Machine (250). Our trading brings us the most prestigious vendors to procure only quality-approved Machines. These All Geared Lathe Machines (250) are widely demanded in various industries because of their efficient performance. We ensure timely delivery of products.

Technical specifications

Model	VGM - 250 Series
Type of Bed	Hardened Bed Ways
Swing Over Bed	490mm
Height of Centre	250mm
Width of Bed	277mm
Swing Over Cross Slide	320 mm
Swing in Gap	690mm
Length of Gap in Front of Face Plate	125 mm
No. of Spindle Speed	8
Spindle Speed Range	40-1200 RPM
Taper in Spindle Sleeve	MT-6
Spindle Bore	50mm
Spindle Nose	Threaded / A2-6
Spindle Nose Diameter	76.20 mm
Spindle Threads	6 TPI
No.l of British Threads	44
Range of british Threads	2 to 60 TPI
No. of Metric Threads	24
Range of Metric Threads	0.5 to 15mm
No. of Feeds	40
Range of Longitudinal Feeds	0.066 to 2 mm / Rev. of spindle
Range of Transverse Feeds	0.0165 to 0.5mm/Rev. of Spindle
Lead Screw Diameter / Pitch	31.75 mm / 4 TPI
Tail Stock Spindle Diameter	50.8 mm
Taper in Tail stock Quill	MT-3
Cross Slide Travel	250 mm
Compound Slide Travel	140 mm
Tail Stock Sleeve Travel	150 mm
Tool Post Square	100 x 100mm
Tool Shank Size	19 x 19 mm
Suitable Electrical HP	2 Hp
